Product Name :

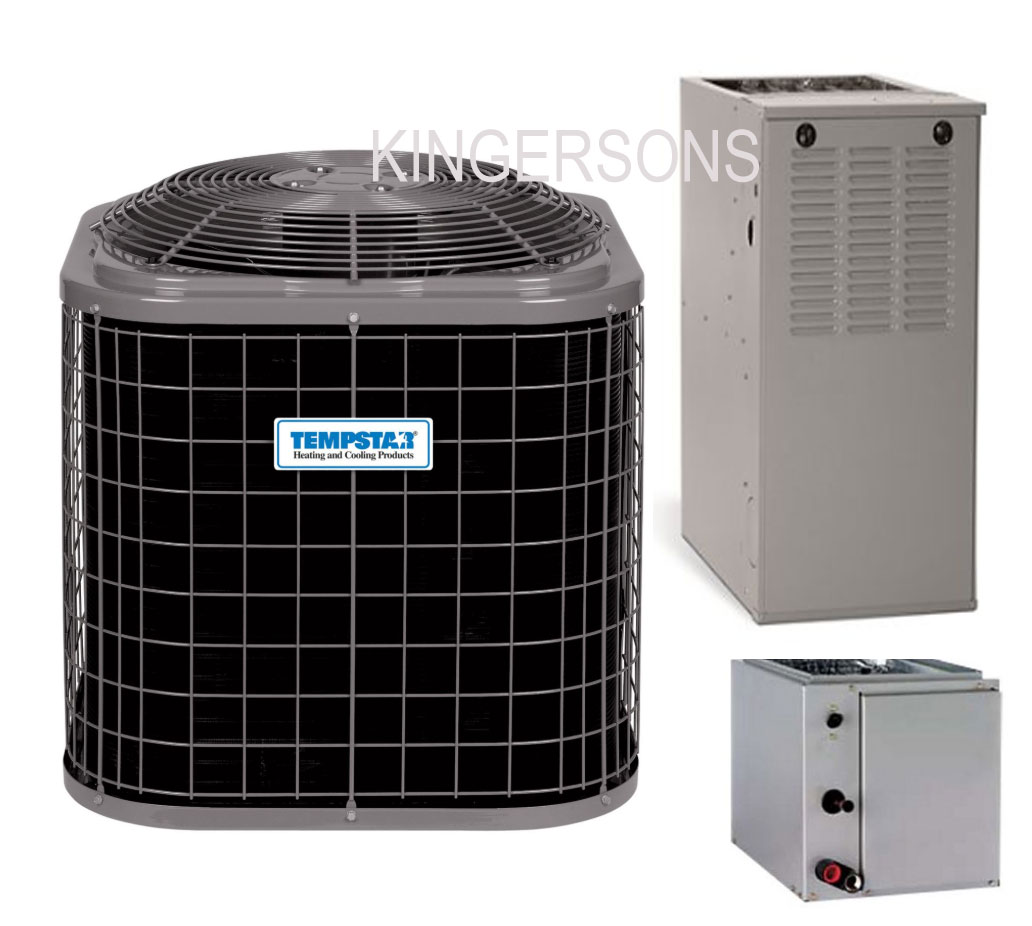

4 Ton TEMPSTAR TCA748GKA END4X60L24A F80CTL1102120A Variable Speed, Two-Stage Gas Furnace17 SEER Two Stage A/C Condenser R410A
|
|
|
|
Item# :
|
TCA748GKA END4X60L24A F80CTL1102120A
|
|
|
|
Choose QTY
:
|
|
|
|
|
|
|
DescriptionHIGH EFFICIENCY 17 SEER TWO-STAGE AIR CONDITIONER WITH OBSERVER COMMUNICATING CONTROL SYSTEM2 THRU 5 TONS SPLIT SYSTEM208/230 Volt, 1-phase, 60 HzREFRIGERATION CIRCUIT- Copeland Scroll® Ultratech compressors on all models
- Filter-drier supplied with every unit for field installation
- External high and low refrigerant service ports
- High and low pressure switches
- Copper tube / aluminum fin coil
PERFORMANCE- Self-configuring installation capabilities with Observer Communicating Wall Control
- Outdoor temperature sensor factory installed
- Ball Bearing PSC fan motors on all models
- High performance compressor sound shield standard
- Isolation compressor grommets
EASY TO INSTALL AND SERVICE- Text based diagnostics with Observer Communicating Wall Control
- Only 2 control wires required from communicating indoor unit to condenser
- Easy access service valves on all models
- Innovative control box design
- Only two screws to access control panel
- Factory charged with R-410A refrigerant
BUILT TO LAST- High gloss, baked-on powder coat finish over galvanized steel
- Post-painted (black) coil fins
- Coated, weather-resistant cabinet screws
- Coated inlet grille with 3/8” (10mm) spacing for extra protection
- Corner posts for extra strength and style
WARRANTY*- 10 year No Hassle Replacement limited warranty
- 5 year parts limited warranty (including compressor and coil)
- With timely registration, an additional 5 year partslimited warranty (including compressor and coil) * Applies to original purchaser/homeowner, some limitations may apply. See Warranty certificate for complete details.
DescriptionCabinet Features:- Removable Front Access Panel
- Easy Slide out Coil for Inspection
- UV Light Knock Out Provided On Cabinet
- Hemmed Flanges for Safer Handling
- Foil Faced Insulation
- Non Sweat Cabinet, Even At Extreme Conditions
- Cabinets Meet or Exceed 2% Air Leakage Codes
- Sturdy, 22 Gauge, Pre-Painted Steel Cabinet
Coil Features:- Copper Tube, Aluminum Fin a Coil with Latest High Tech Fin Design
- Bolt On TXV Metering Device Factory Installed On All Models
- TXV and Manifold Positioned To the Side for Easier Cleaning
- Innovative Drain Pan Design for Complete Water Removal
- Two Condensate Drain Connections
- 2 Piece Delta Plate for Easier Removal and Cleaning
Multiposition Installation:- Upflow, Downflow, or Horizontal
- Upflow Cabinet Widths and Horizontal Cabinet Depths Match Flush with ICP Gas Furnaces
- Industry Exclusive Tin Coated Copper Main Tubing for Additional Corrosion Protection for Environmentally Sound R410A Systems
Warranty- 5 Year Coil, 5 Year Parts
DescriptionFeatures- 80% AFUE
- Cabinet air leakage less than 2.0% at 1.0 in. W.C. and cabinet air leakage less than 1.4% at 0.5 in. W.C. when tested in accordance with ASHRAE standard 193
- Supports two-stage cooling units
- ION™ Communicating Control System
- Observer® Communicating Control System
- Flame roll-out sensors standard
- Category I venting
- Blocked vent switch
- Dehumidification feature in cooling
- 24 VAC humidifier terminal electronic air cleaner terminal
- Low NOx units are designed for California installations and meet 40 ng/J NOx emissions. Can be installed in air quality management districts with a 40 ng/J NOx emissions requirement.
Tougher- Variable speed ECM blower motor
- Adjustable heating blower OFF delay
- Factory set blower ON delay
- RPJ Aluminized steel heat exchanger
- High temperature limit control prevents overheating
- Direct ignition with Silicon Nitride ignitor
- One piece prepainted steel cabinet
Quieter- Two-stage operation
- Two-stage induced draft blower
- In-shot burners
- Insulated blower compartment
Easier to install and serivce- 33-1/3” (847mm) high, for ease of installation
- Quarter turn knobs for easy door removal and secure attachment
- Factory shipped for natural gas, with propane gas conversion kits available
- Four position - upflow/downflow/horizontal (left/right) installation
- Three position vent elbow capability
- Through the casing flue pipe for counterflow applications
- Common venting with other Category I appliances
- Masonry chimney adapter available
- Self diagnostics
- Slide out blower assembly
Limited Warranty- 10 year No Hassle Replacement™ limited warranty
- Lifetime heat exchanger limited warranty
- 5 year parts limited warranty
- With timely registration, an additional 5 year parts limited warranty * For residential applications only. See warranty certificate for complete details and restrictions, including warranty coverage for other applications.
Features and SpecificationHeating Stages | Two Stage |
---|
Height | 33.2500 |
---|
Ignition Type | Hot Surface |
---|
Includes Filter Rack | No |
---|
Length | 29.0000 |
---|
Energy Star Rated | No |
---|
Cubic Measurement | 11.7183 |
---|
Equipment Type | Furnace |
---|
Gas Connection | White Rodgers |
---|
ETL Listed | No |
---|
Fuel Type | Natural Gas |
---|
Full Load Amps | 12.8 |
---|
UL Listed | No |
---|
UOM | EA |
---|
UPC | See Optical |
---|
Voltage | 115 VAC |
---|
Warranty Offered | Yes |
---|
Width | 21.0000 |
---|
Stage | Two |
---|
OPT Code | 1PF80CTL1102120A |
---|
Phase | Single |
---|
Product Family | F80CTL |
---|
Weight | 152.0000 |
---|
Brand | Tempstar |
---|
Air Flow | Multi-Position |
---|
Blower Motor HP | 1 HP |
---|
Blower Motor RPM | 1200 |
---|
Blower Motor Speeds | Variable |
---|
Blower Motor Type | ECM |
---|
Blower Wheel | 11" x 10" |
---|
BTU Input | 72500, 72500-110000 |
---|
BTU Output | 59000, 59000-89000 |
---|
CFM | 1295, 1295-2155 |
---|
CFM Heating | 1295, 1295-1465 |
---|
LIMITED WARRANTY*- 10 year parts limited warranty (including compressor and coil) with timely registration
- 5 year parts limited warranty if not registered within 90 days of original installation
